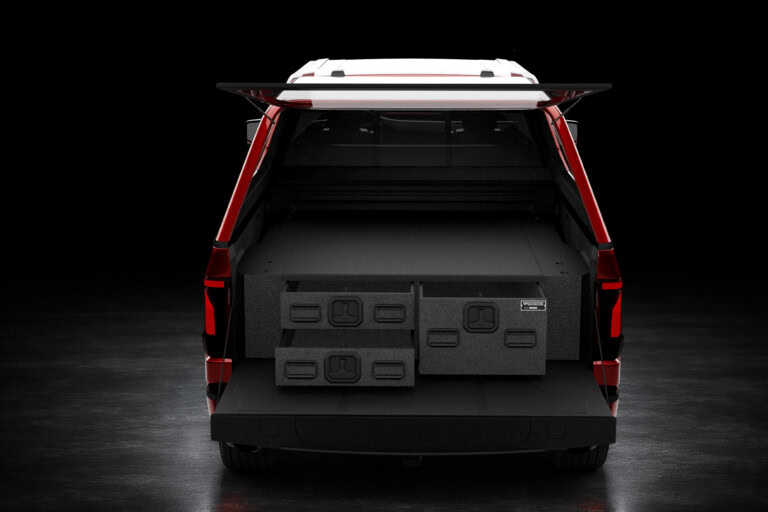

STACKED DESIGNS
For Pickups
Organized, secure, and ready when it counts.
Purpose-built layers for control and access.

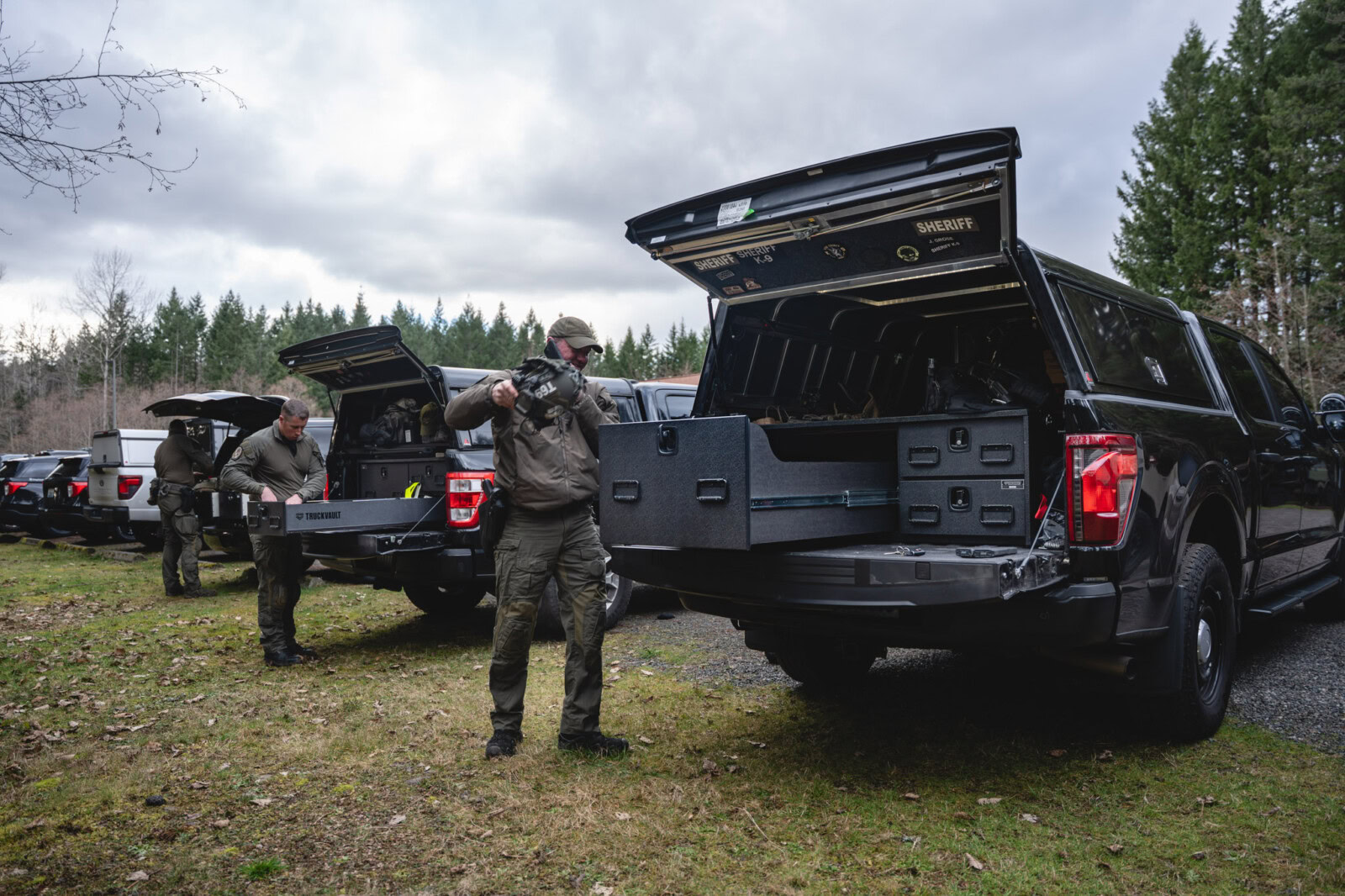

Real-World Use
Systems built to organize gear with layered layouts. Separate equipment by priority, and keep everything secure, visible, and ready when the moment calls.
Overline
I’m a content title
5 REASONS WHY TRUCKVAULT HAS THE BEST TRUCKBED CAMPING SOLUTION
If you spend any amount of time camping out of your truck bed, you know the difficult balance of comfort, organization, storage and security. When you only have a few square feet to work with, it can be tricky business to make everything fit in a convenient way while allowing space to relax and rejuvenate. Here’s […]
The Best Overlanding Camp Kitchen
Overview TruckVault Base Camp Line Offers an Extremely Portable Camp Kitchen There’s a million things you could be doing while overlanding, but one thing you have to do is eat. In addition to secure storage and a sleeping platform, our Base Camp 1 and Base Camp 5 boast an impressive camp kitchen drawer, complete with stove storage, a cutting […]
Finishing Option

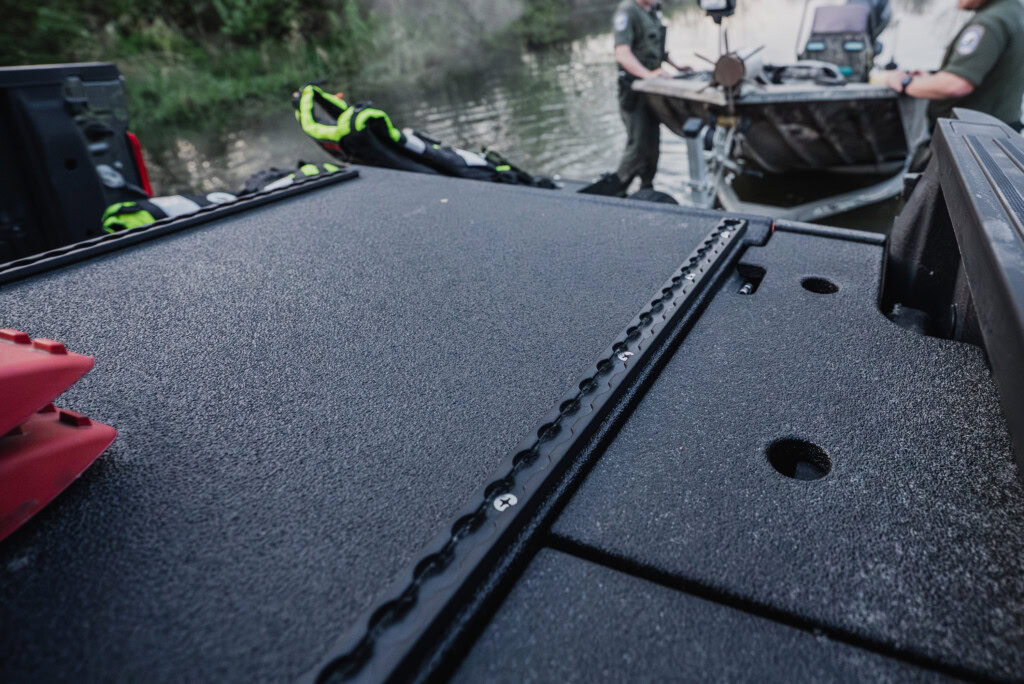

All-Weather
Spray Coating

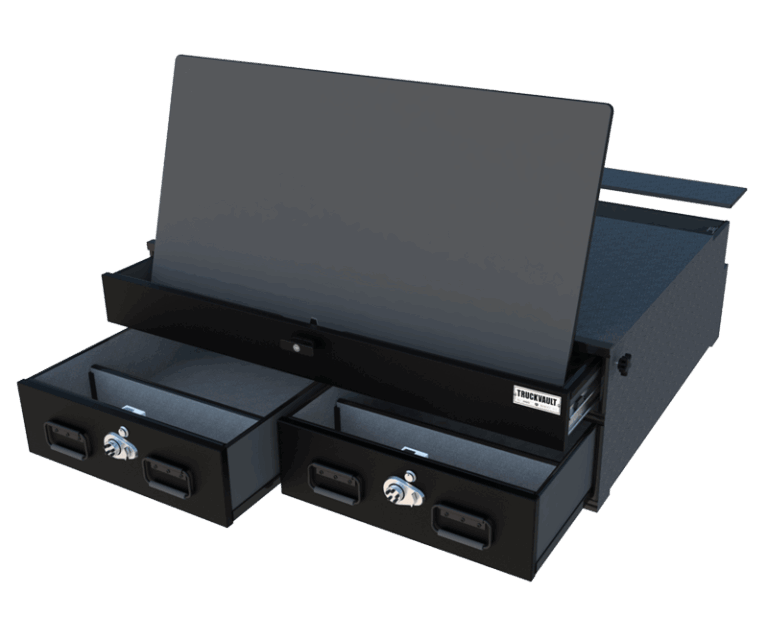

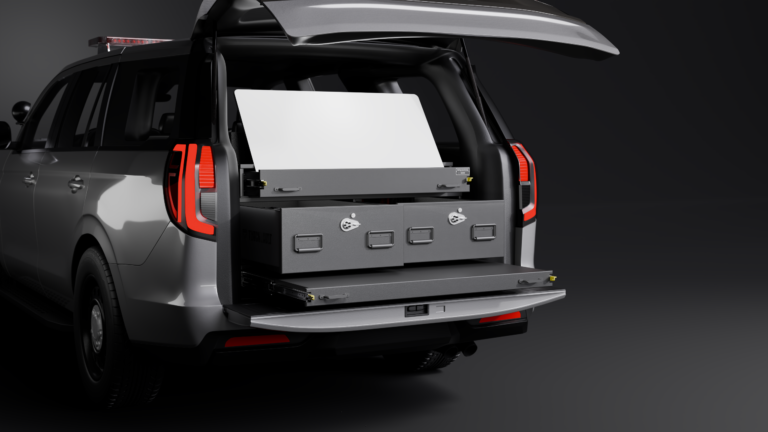

Turn your drawer system into a working surface. Built for quick planning, notes, and coordination in the field, these boards give you a clean, reusable space when it matters most. Standard on select Stacked Designs and available across most builds when space allows.

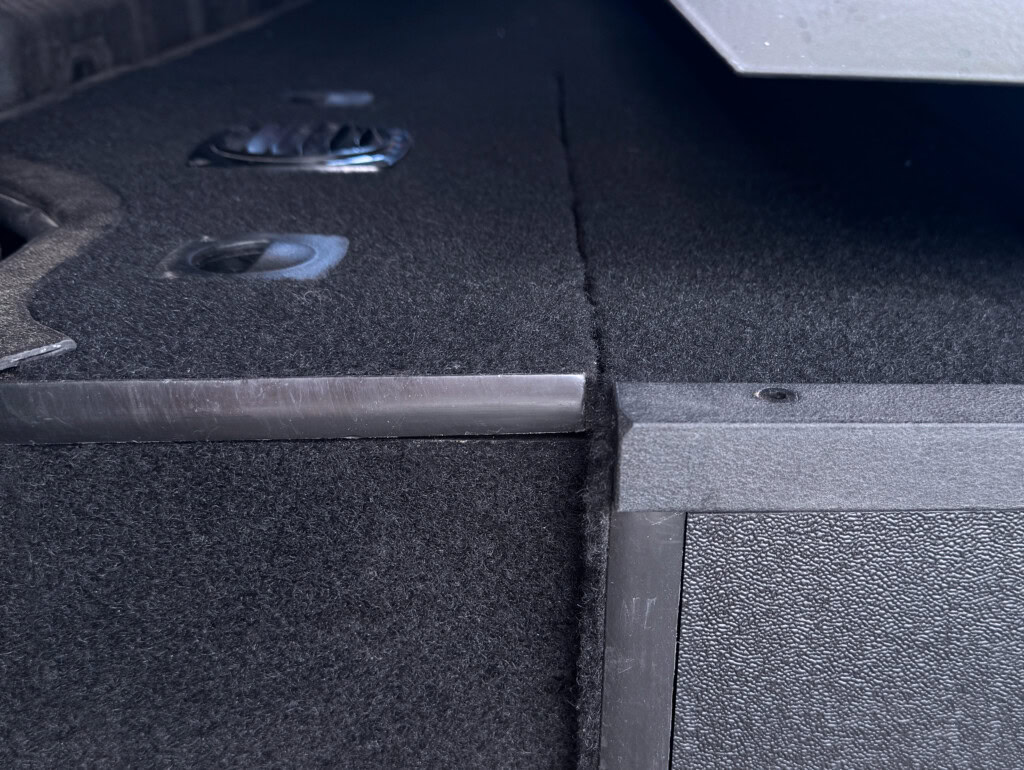

Finishing Option
Covered Bed
Carpet Protection

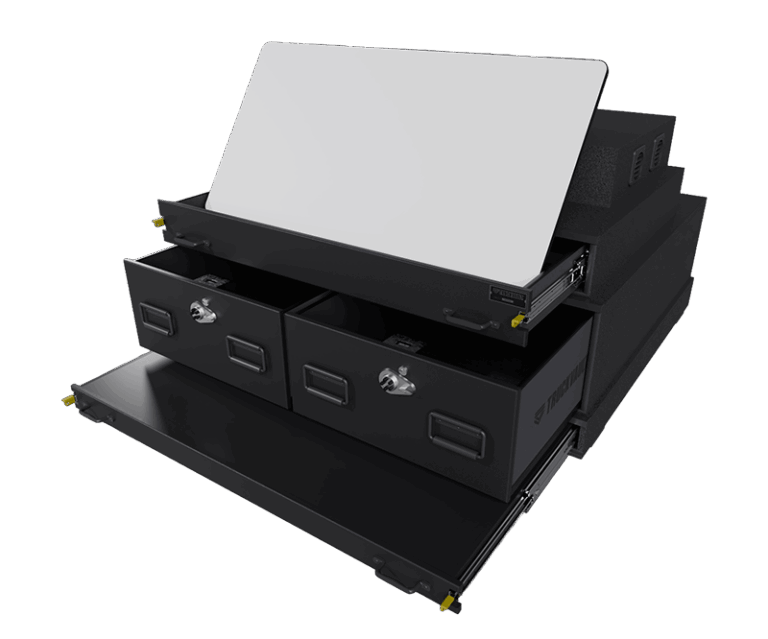

Turn your drawer into an instant workstation. Built to handle up to 200 lbs, this surface is ready for gear prep, maintenance, or command tasks—wherever the job takes you. Add it to any Stacked Design to extend your capability in the field.
STACKED Up against It

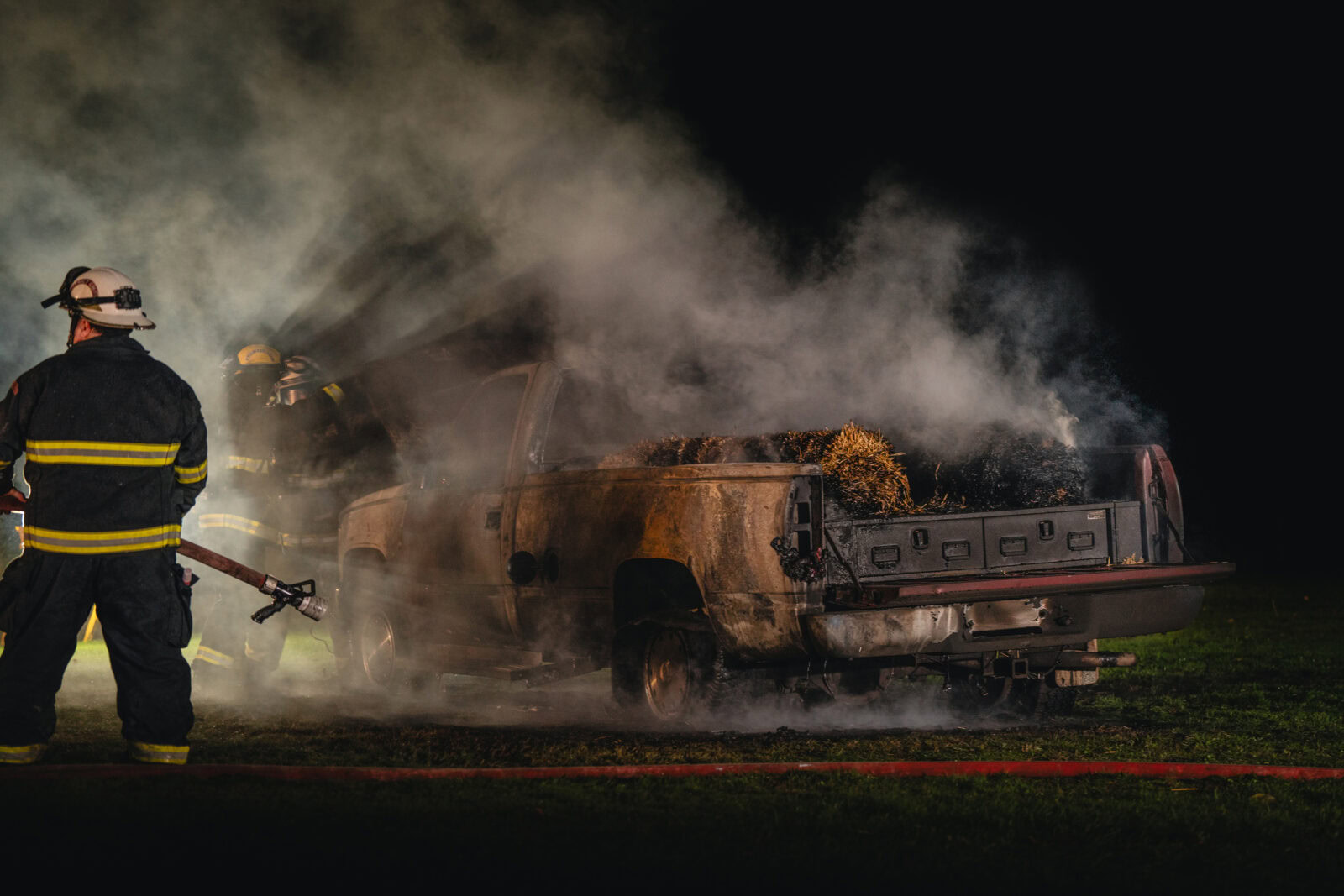

Tested to the Extreme
1050°F outside. 71°F inside.
Tested against real-world fire timelines, with external temps exceeding 1000°F while internal conditions stayed controlled and gear protected.
Security Features
Focus on Security
Lock + Latch Options
KABA Simplex
Mechanical combination access with repeatable performance—ideal for controlled environments where secure, consistent entry is required.
Compression Latch
Simple, durable, and trusted. A straightforward solution for secure storage with keyed access.
Keyless FOB
Unlock remotely with the push of a button. Streamlines access without interrupting your workflow
Pickup Series Stacked Designs

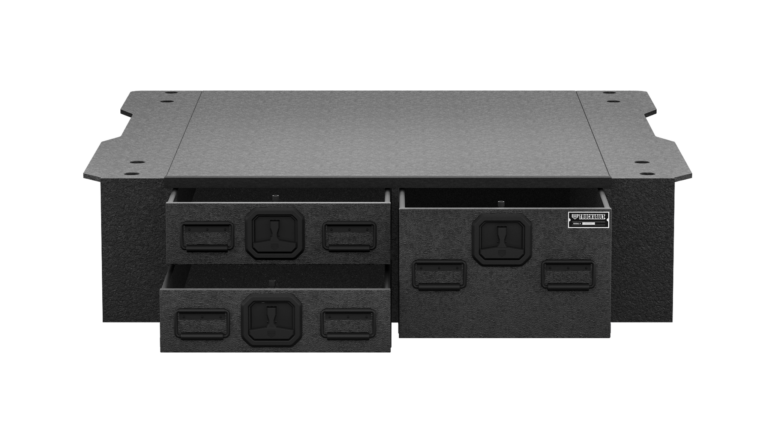

ST2 Field Ranger
For All-Weather + Covered Bed Pickups
ST2 Field Ranger – AW
AW for All-Weather. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi aliquet enim ligula, ac egestas turpis egestas sit amet. Nullam eu mauris id ante scelerisque lobortis.
ST2 Field Ranger – CB
CB for Covered Bed. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi aliquet enim ligula, ac egestas turpis egestas sit amet. Nullam eu mauris id ante scelerisque lobortis.
Pickup Series Stacked Designs

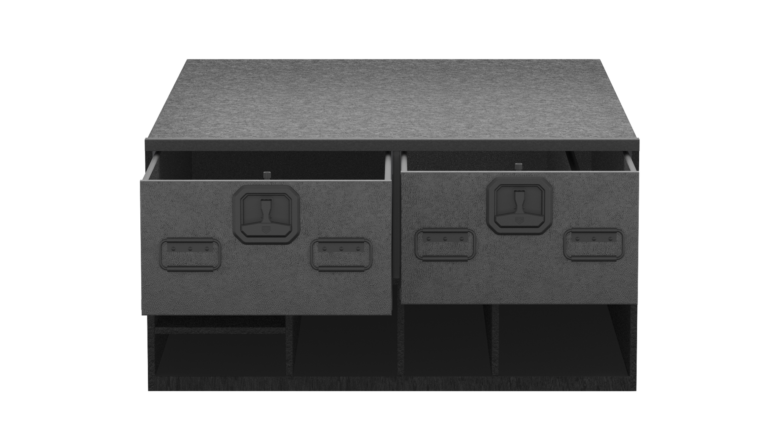

ST4 Surveyor
For All-Weather + Covered Bed Pickups
ST4 Surveyor – AW
AW for All-Weather. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi aliquet enim ligula, ac egestas turpis egestas sit amet. Nullam eu mauris id ante scelerisque lobortis.
ST4 Surveyor – CB
CB for Covered Bed. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi aliquet enim ligula, ac egestas turpis egestas sit amet. Nullam eu mauris id ante scelerisque lobortis.
Above and Beyond
Custom.
It’s what we do.
Take it further
Our core designs solve most use cases right out of the gate. But if your setup calls for something different, we’re ready to build it with you—tailored to your vehicle, your gear, and how you work.
EXPLORE YOUR
DRAWER OPTIONS
Your TruckVault can be configured around your vehicle, gear, and storage needs. Use the sections below to compare common drawer height and width options available across our core designs.
Drawer Height
Standard [ 6″]
Enough vertical room for various low profile equipment and gear.
Utility Height [ 8″]
Ample drawer depth for larger sized equipment and gear.
Magnum [ 10″]
Ample drawer depth for larger sized equipment and gear.
Extended Height [ 8″]
Even more room! 12″ of depth for larger gear and cases.
Fully Custom
You define it. Custom fit for your gear, with the lock and handle configuration that makes the most sense for you.
Drawer Orientation
2 Drawer
Two drawers of equal width.
Offset Drawers
One 2/3 width and one 1/3 width drawer.
Half-Width
A single drawer measuring half the width of your truck bed.
Stacked Drawers
One standard height (6″) drawer stacked on a magnum height (10″) drawer, each with Offset Drawer configurations.
Fully Custom
This example has a low-profile accessory drawer, multiple locks, and a unique drawer set up. Talk to our design team to design yours.
System SPECS
Finish Options
Black Comp
Walnut
Zebrawood
Teak
Black
Cinder
Gray
Beige
All-Weather Coating
Carpet
Explore Add-ons
ACCESSORIES
Magpul DAKA Grid
Add-ons built for SUV setups—lighting, dividers, and organizers that take advantage of larger cargo areas, improving visibility, control, and faster access to gear.
FAQ
Each drawer can support up to 300 lbs of evenly distributed weight, making it ideal for storing heavy gear such as firearms and other tactical tools. The top-load capacity for pickup models is 2,000 lbs evenly distributed. Tie-down rails are available as accessories to secure large gear on top of the secure storage system.
The Field Ranger system can come as a weather-proof unit, the ST2 Field Ranger AW. This is a standard offering for pickup trucks. However, the covered bed design is made with black, spray-coated drawer faces and OEM carpeted exterior with the option to select black spray-coating.
Absolutely! TruckVault systems are highly customizable. You can configure the size of drawers, locking mechanisms, finishes, and add accessories like foam inserts, dividers, or lighting to meet your specific professional requirements.
Most secure storage systems sit very close to the tailgate. Opening the drawer or reaching down to the Surveyor’s open cubbies is not an option for most hands. If the drawer did manage to open, a hand would likely not have enough clearance to reach into the unit.
Stacked Designs in the Pickup Series by TruckVault are multi-level vehicle storage systems that combine secure drawers, equipment compartments, and organizational features into a single integrated solution. They are designed to maximize storage capacity while maintaining quick access to essential equipment.
Design Your TruckVault
Design Your
Stacked Design
Which Stacked Design is Right For You?

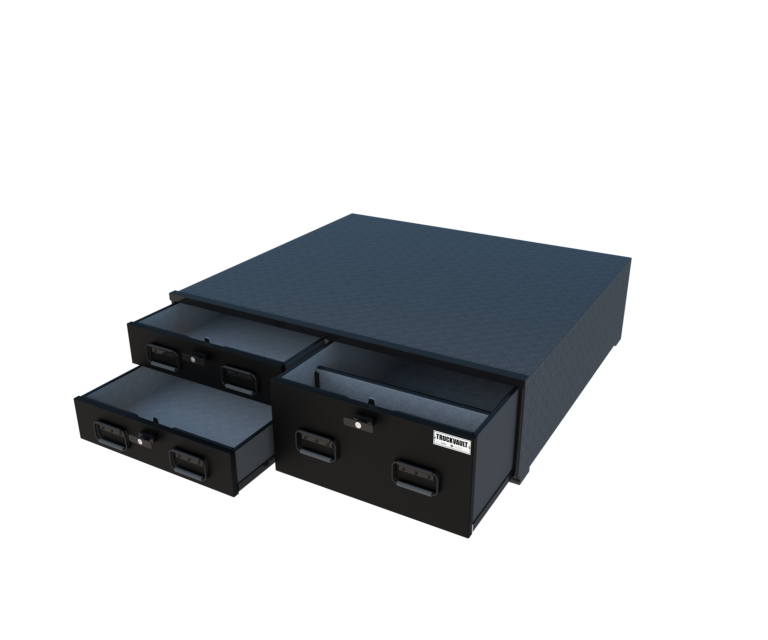

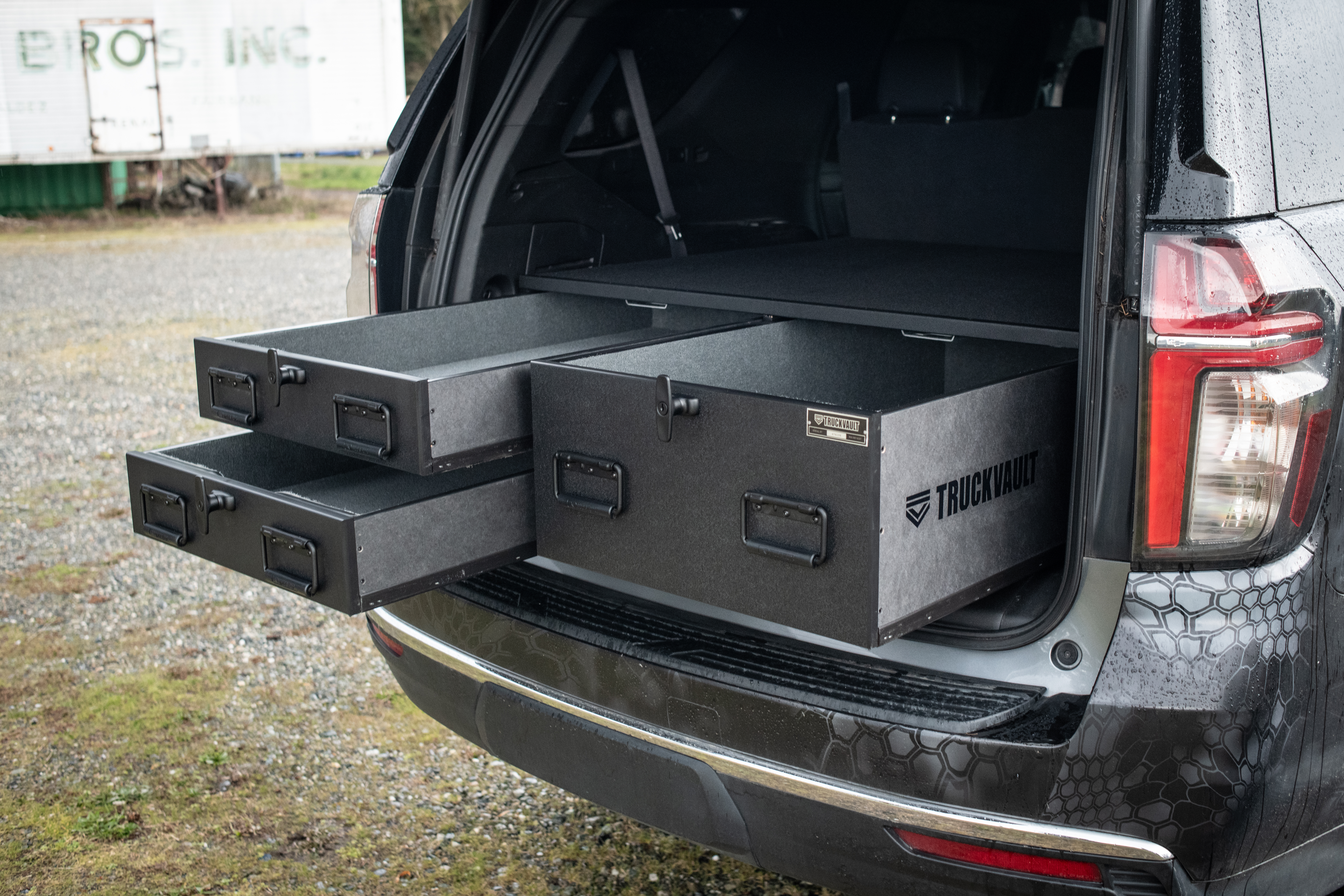

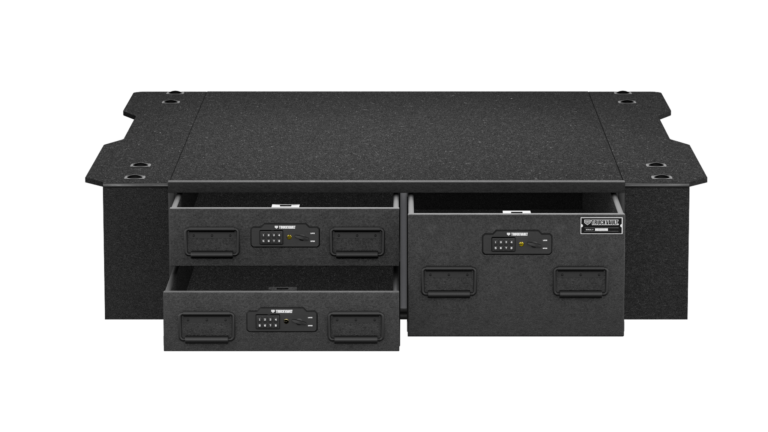

ST2 Field Ranger AW
The Field Ranger is a top choice for professionals needing versatile gear storage, from firearms to bows. For uncovered pickups, our All-Weather product offers secure protection from harsh conditions and theft. It features 2 shallow drawers and 1 extra deep drawer for varied storage needs. A weatherproof exterior coating keeps your belongings safe from water, dust, and heat. The TruckVault Field Ranger is designed to handle all your field equipment, with full All-Weather capability and a 2,000 lb. top load capacity.
Length:
59″ – 94″
Width:
42.5″ – 49.5″
Height:
14.5″ – 16″
Weight:
249 – 650

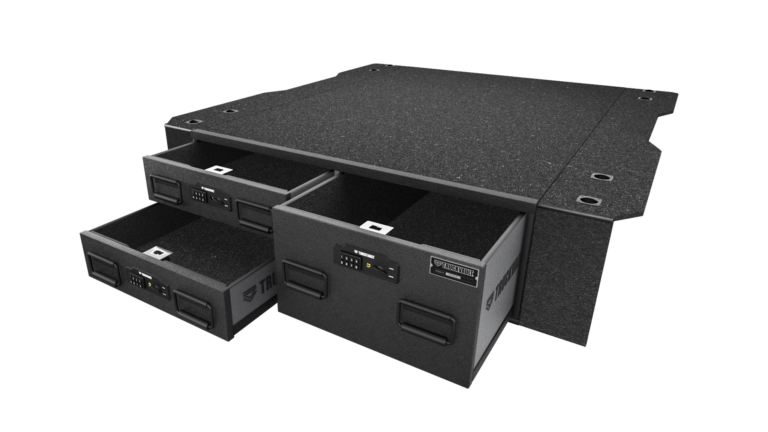

ST2 Field Ranger CB
The Field Ranger is a popular layout for professionals looking to carry a wide range of gear. Two shallow drawers are mounted next to one extra deep drawer to provide a range of storage capacity and organization. All Covered Bed Line units are designed for pick-ups with toppers and feature heavy-duty locks with Strike Guard® technology, full-length drawers, and a divider package that helps you organize your stored items efficiently. A top load capacity of 2,000 lbs. will ensure you will arrive safely with your cargo intact.
*Divider package available upon request. Consult your sales representative.
Length:
59″ – 94″
Width:
42.5″ – 49.5″
Height:
14.5″ – 16″
Weight:
250-650

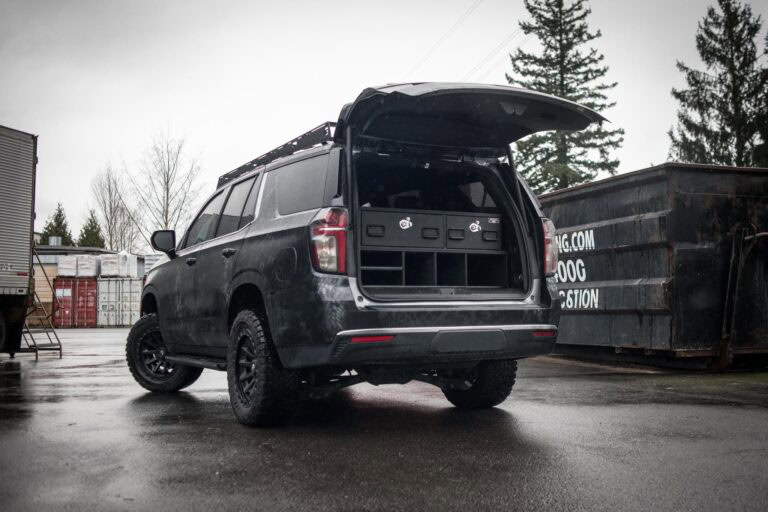

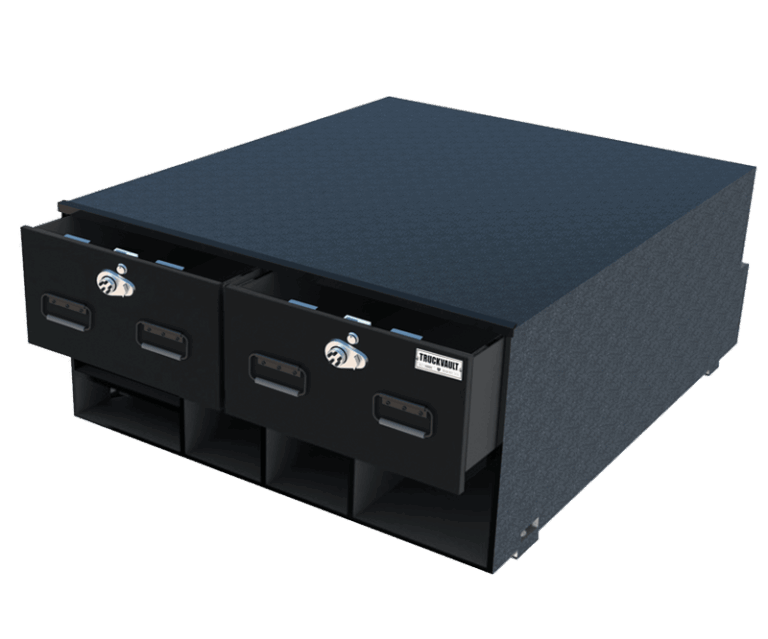

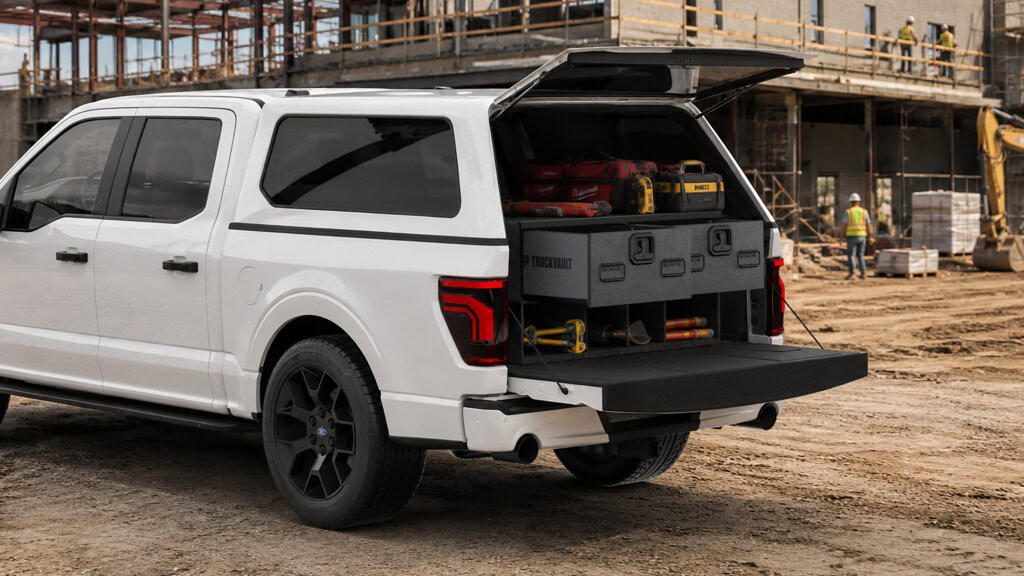

ST4 Surveyor AW

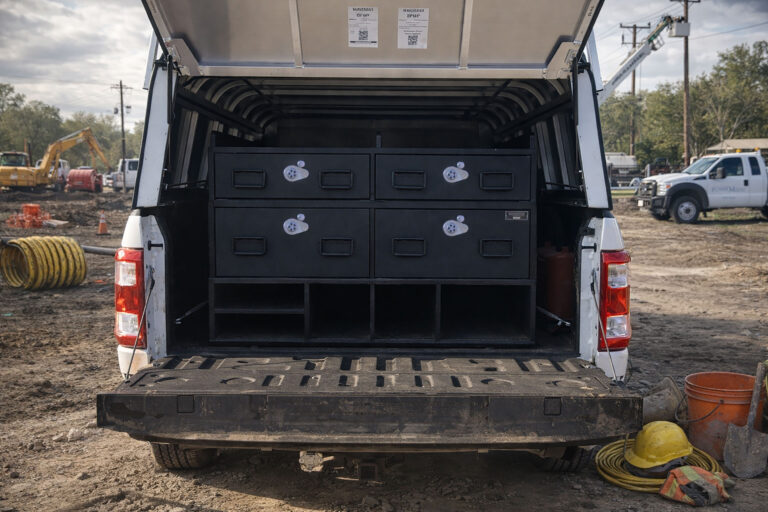

Built with the commercial customer in mind, the Surveyor series combined a set of Standard or Magnum height drawers mounted on top of a series of cubbies. This allows for the storage of long equipment in an easy to access exposed space, along with secure storage above. Additionally, our locks feature Strike Guard® technology to further secure whatever’s stored inside the drawer.

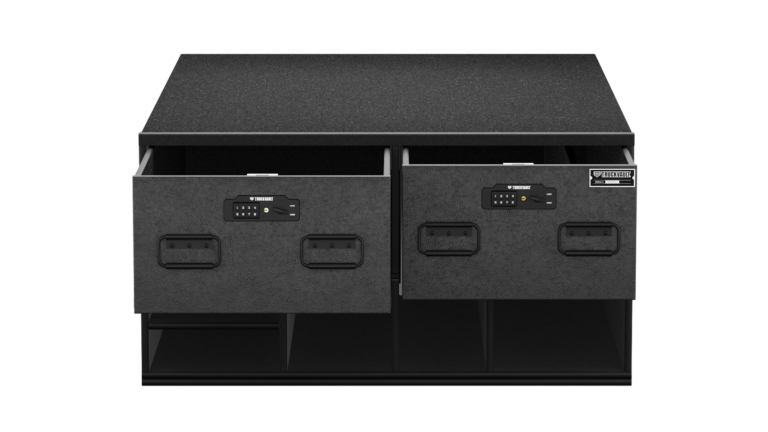

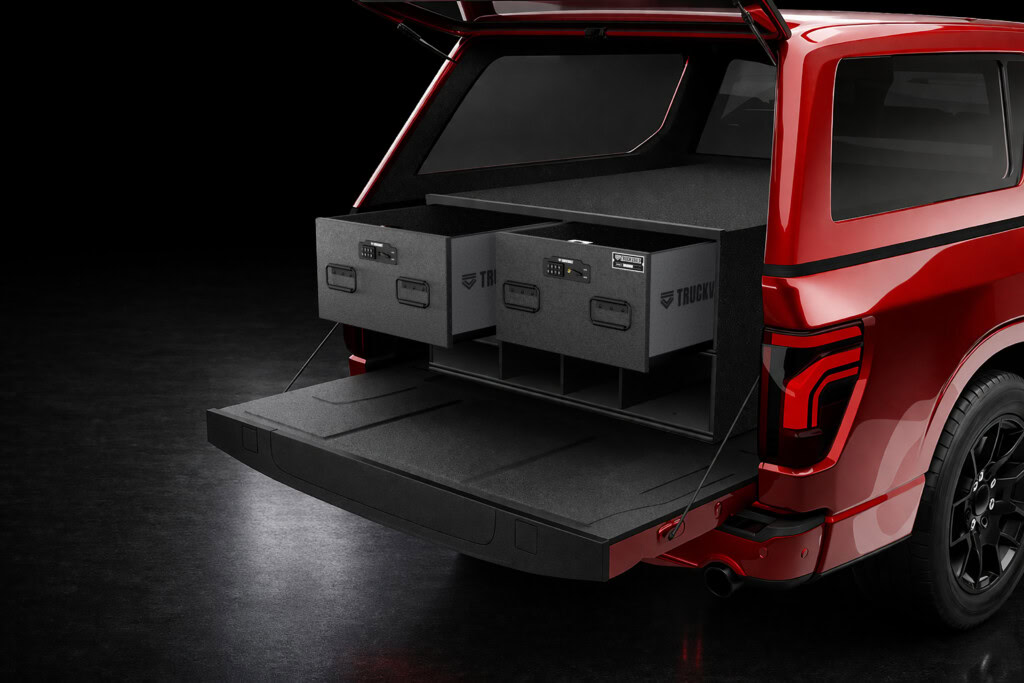

ST4 Surveyor CB
Built with the commercial customer in mind, the Surveyor series combined a set of Standard or Magnum height drawers mounted on top of a series of cubbies. This allows for the storage of long equipment in an easy to access exposed space, along with secure storage above. Additionally, our locks feature Strike Guard® technology to further secure whatever’s stored inside the drawer.
